VMV Series
Hydraulic vibratory pile drivers for marine, civil, and foundation applications, engineered for controlled vibration performance, pile driving and extraction, and machine-specific jobsite requirements.
Models
Choose a compact, mid-range, or heavy-duty VMV model based on carrier size, hydraulic flow, pile type, and jobsite conditions.

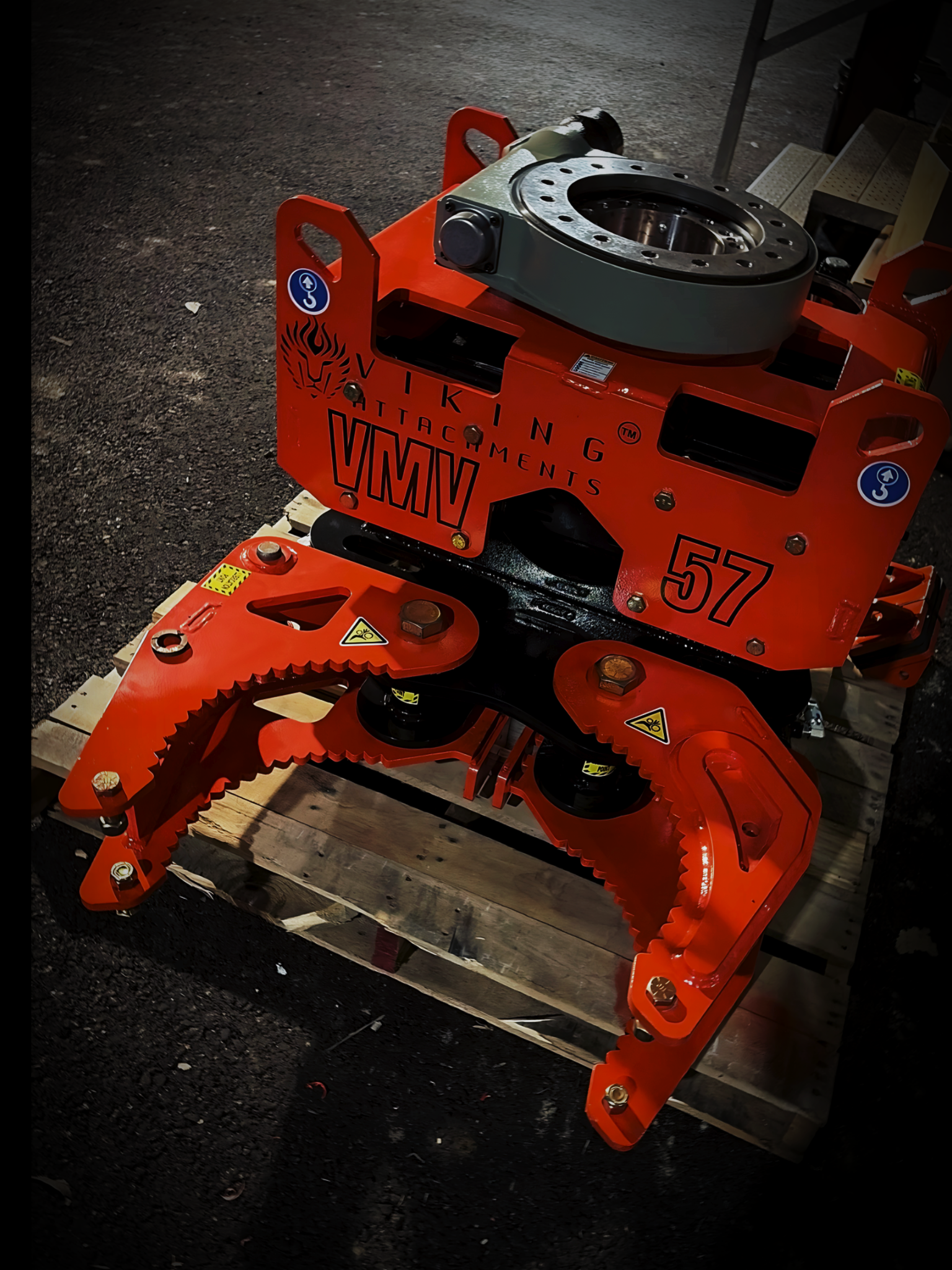

Compact hydraulic vibratory pile driver

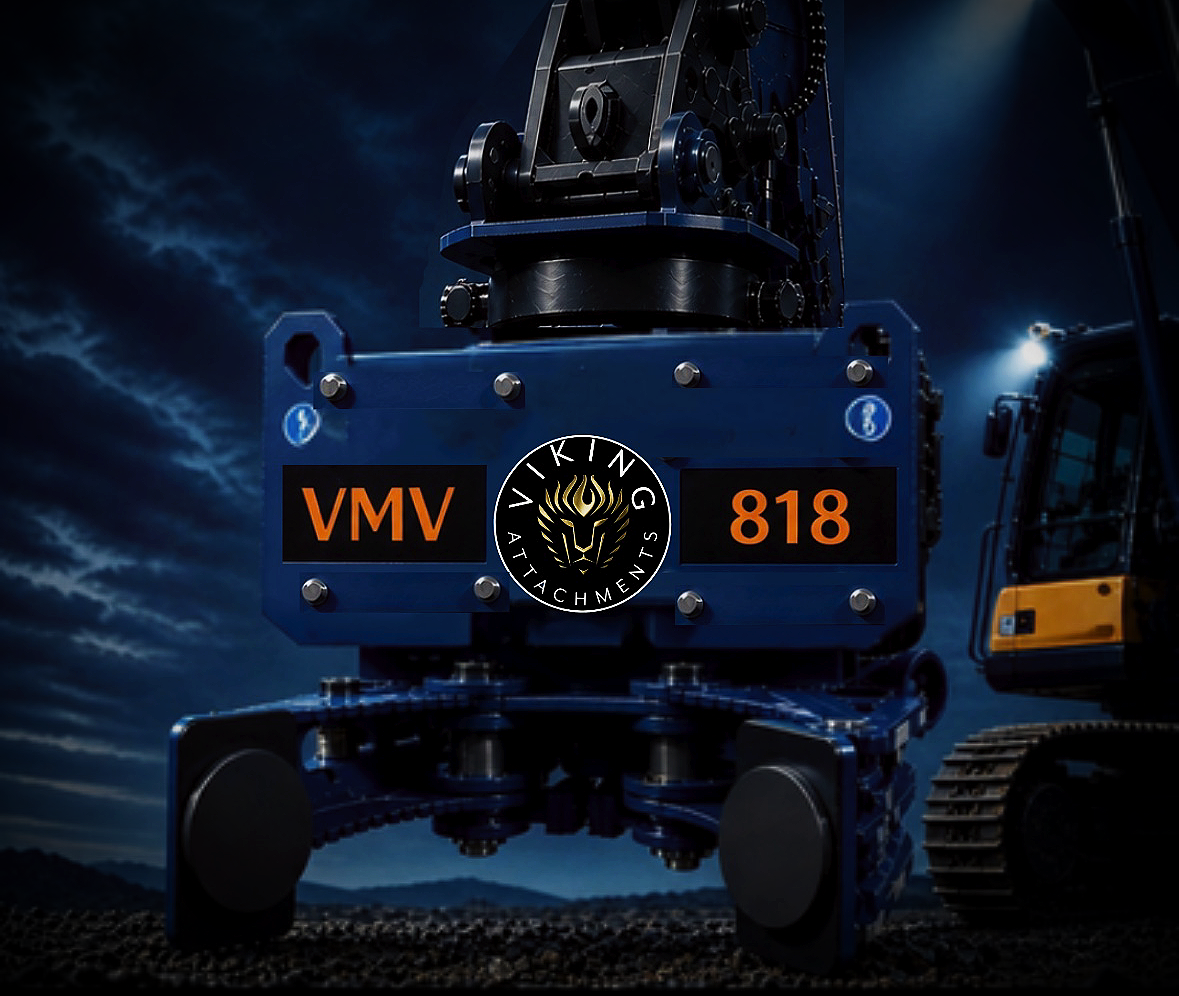

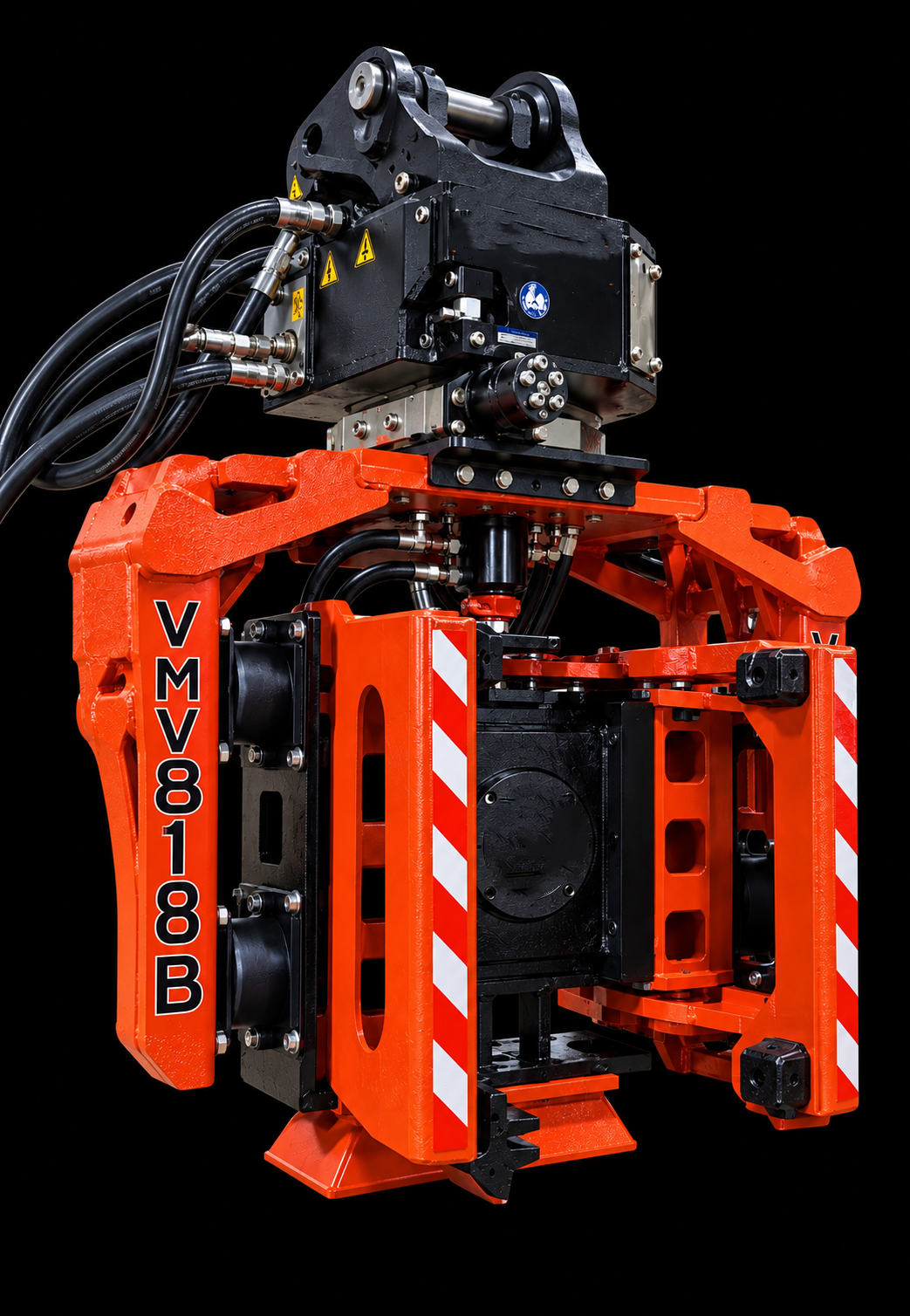

Mid-range hydraulic vibratory pile driver

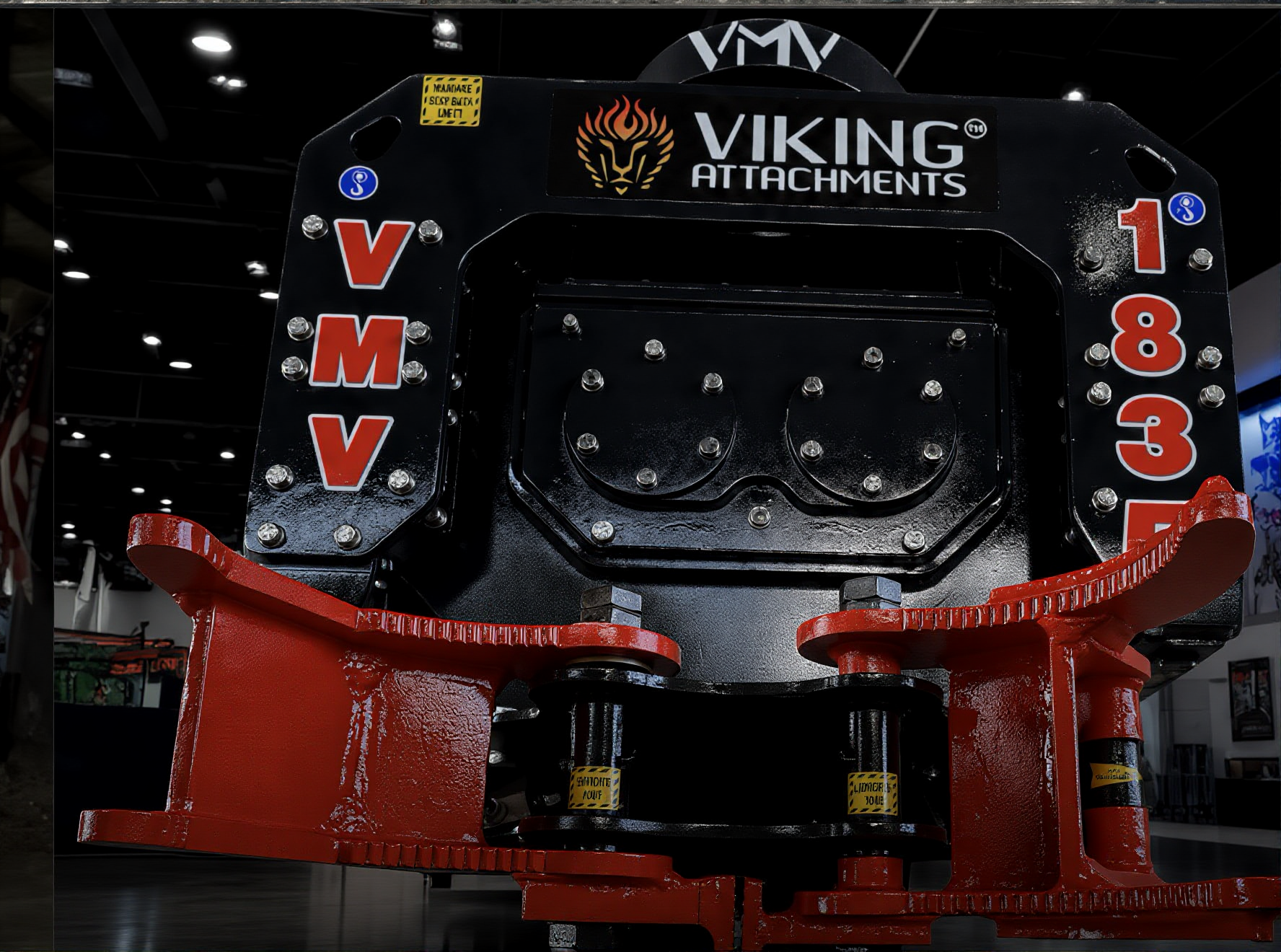

Heavy-duty hydraulic vibratory pile driver
Compare All Three Models
Side-by-side specs across the full VMV lineup so you can find the right excavator-mounted vibratory pile driver for your carrier, soil conditions, and project requirements.
| Specification | VMV 57 | VMV 818 | VMV 1835 |
|---|---|---|---|
| Operating Weight | 1,140 lbs | 2,200 lbs | 5,700 lbs |
| Eccentric Moment | Low | Medium | High - variable |
| Centrifugal Force | 50 kN (~11,200 lbf) | 70 kN (~15,730 lbf) | 180 kN (~40,460 lbf) |
| Frequency Range | ~2,140 RPM (~36 Hz) | ~2,140 RPM (~33 Hz) | 350-550 VPM variable |
| Amplitude Control | Fixed | Infinite variable | Full variable moment |
| Clamping Force | Hydraulic, variable | Hydraulic, variable | Hydraulic, variable |
| Max Pile Diameter | 22 in | 22 in | 22 in (larger on request) |
| Required HPU Flow | 15 GPM | 22-30 GPM | 36 GPM |
| Required HPU Pressure | 2,100-3,000 PSI | 2,500-2,700 PSI | 3,000-3,500 PSI |
| Required HP | 25 HP minimum | 45 HP minimum | 75 HP minimum |
| Carrier Class | 5-10 ton excavators | 10-20 ton excavators | 20-35 ton excavators |
| Bail Pin Diameter | 2.75 in | 3.5 in | 4.5 in |
| Soil - Granular (sand/gravel) | Excellent | Excellent | Excellent |
| Soil - Dense/Cohesive | Moderate | Good | Excellent |
| Vibration Isolation Class | Class A - low amplitude | Class B - medium amplitude | Class C - high amplitude, variable moment |
| Model Details | View VMV 57 | View VMV 818 | View VMV 1835 |
Call us. Our team can help match the right machine to your carrier, soil conditions, and project requirements.
